QY-100Lpro ENVIRONMENTAL SAMPLING ROBOT

QY series sampling robots are widely used in polluted site investigation, repair, and engineering geological survey and other industries.

Download Brochure

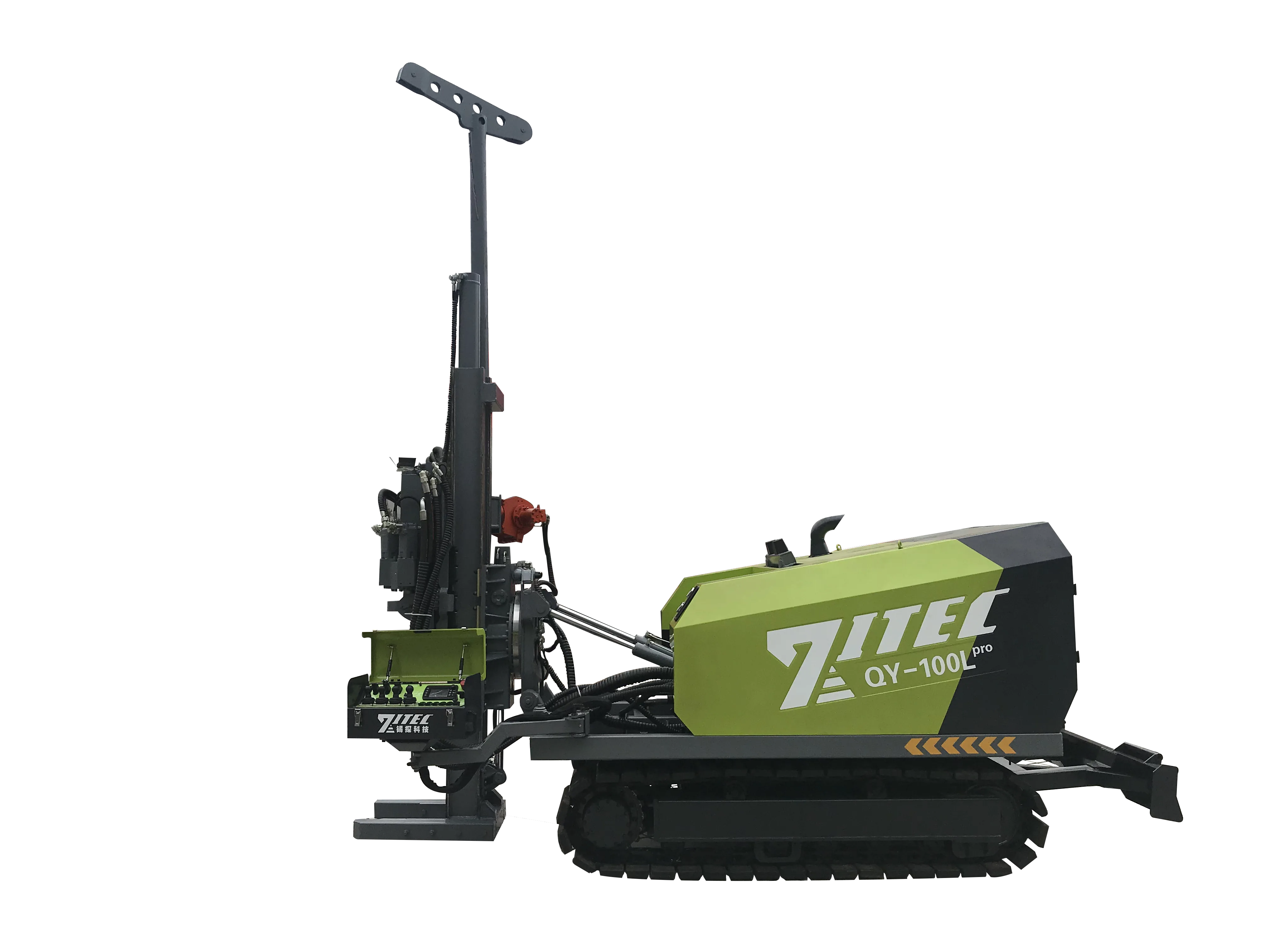

QY-100Lpro environmental sampling robot

MULTI-ANGLE DETAILS AND JOBSITE PERFORMANCE

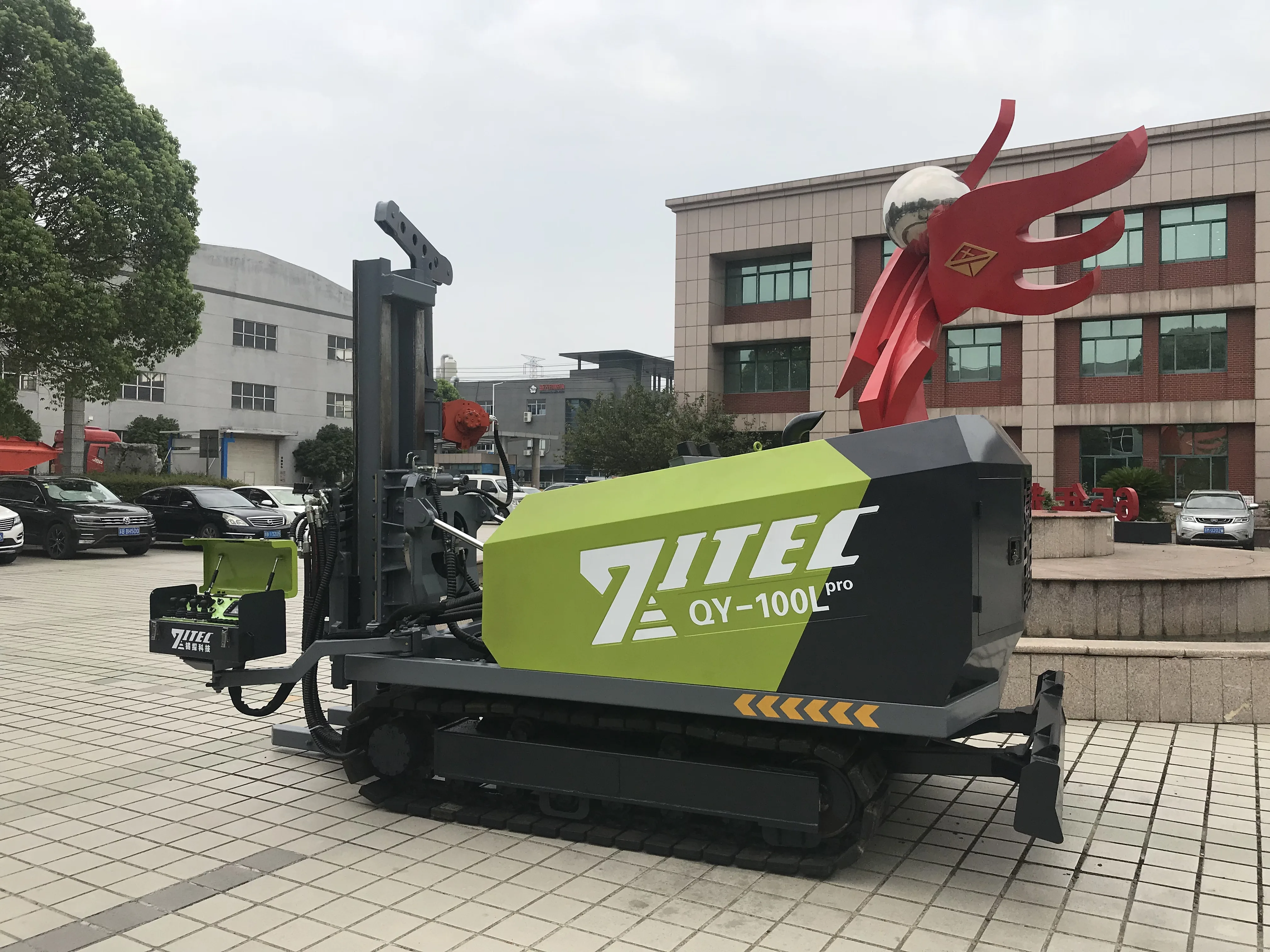

  • QY-100Lpro multi-angle view 1

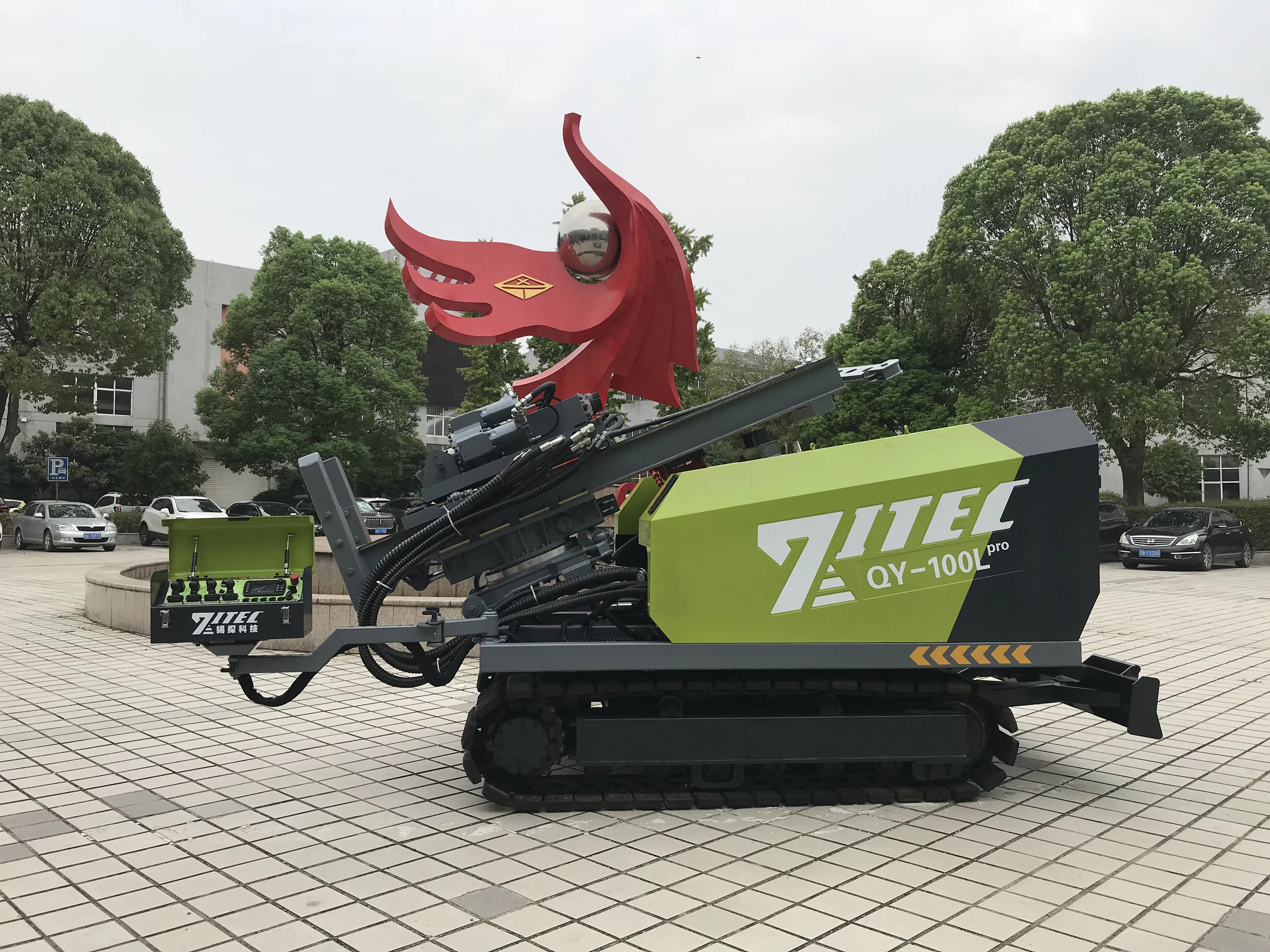

  • QY-100Lpro jobsite performance view 2
  • QY-100Lpro multi-angle view 3 (mock)
  • QY-100Lpro jobsite performance view 4 (mock)

PARAMETERS

Name QY-100Lpro
Integrated impact and rotation power head
High torque (Nm)5600
Low torque (Nm)1800
High speed (rpm)80
Low speed (rpm)20
Output formØ69~65
Impact frequency (bpm)1900
Impact power (kW)12
Power head lifting force (kN)260
Propulsion force of power head (kN)185
Hydraulic winch lifting force (kN)12
Power head stroke (mm)2000
Weight of drilling rig (kg)6000
Transport dimensions (L×W×H)(mm)4000×1980×2400
Working dimensions (L×W×H)(mm)4200×1980×4800
Rated power (kW)93
Front and rear sliding of the frame (mm)450
Tower lifting angle (°)25~100
Derick inclination angle (°)-15~15
Rear hanger capacity (kg)1200
Walking speed (kmh)2.8~4.2
Ground specific pressure (kg/cm²)0.36
Name MD-100A MD-120A MD-150D MD-C150
Drilling diameter(mm)φ120~φ250φ150~φ250φ150~φ250φ150~φ250
Drilling depth(m)120~80140~100170~130170~130
Drill pipe diameter (mm)φ73~φ114φ73~φ114φ73~φ146φ73~φ146
Drill pipe angle(°)-10~90-10~900~900~90
Rotor output speed(r/min)12~10018~10810~17010~75
Rotor output torque(Nm)5500700075009500
Rotor lifting force(kN)62707070
Rotor feeding force(kN)32363636
Feeding process(mm)180018001200(customizable)1500(customizable)
Input power(motor)(Kw)37+2.245+2.255+2237+30+2.2
Total weight(kg)2800280032003800
External dimension in transportation condition(mm)3400×650×15003400×690×15003315×1500×13752800×600×700

AFTER-SALE SERVICE

PROFESSIONAL SERVICE TEAM

XITEC Technology maintains a dedicated professional maintenance team and has established specialized overseas service centers for environmental drilling rigs. We are capable of servicing 99% of jet grouting, anchoring, and environmental drilling rigs available on the market. Upholding our commitment to protecting customer interests, we provide honest and reliable service, aiming for total customer satisfaction and ensuring every repair is completed to the highest standard.

CORE MAINTENANCE SERVICES

Our full-scope drilling rig maintenance covers all brands, including routine servicing, undercarriage repairs (track shoes, final drives, tensioning systems), rotary head overhauls (spindle parts replacement, hydraulic accumulator nitrogen charging), electronic & hydraulic system repairs, plus wear parts and consumables replacement.
